ESDZV201-1BF4

ESD protection

ESDZV201-1BF4 Features

* Low clamping voltage: 31 V at 16 A IPP TLP

* Bidirectional device

* Stand-off voltage: 20 V

* 0201 thin package PCB area: 0.18 mm2

* Complies with the following standards: IEC 61000-4-2 level 4

* ±30 kV (air discharge)

* ±18 kV (contact disch

ESDZV201-1BF4 General Description

The ESDZV201-1BF4 is a bidirectional single line TVS diode designed to protect the data line or other I/O ports against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required. DS13171 - Rev 2 - June 2022 For further information c.

ESDZV201-1BF4 Datasheet (448.95 KB)

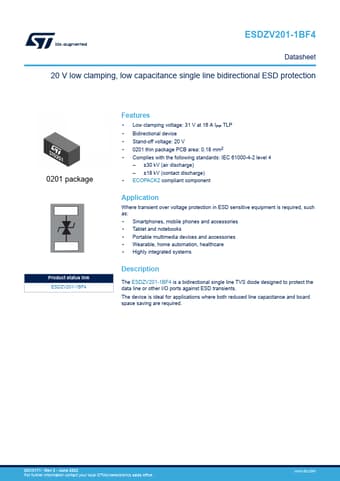

Preview of ESDZV201-1BF4 PDF

Datasheet Details

Part number:

ESDZV201-1BF4

Manufacturer:

STMicroelectronics ↗

File Size:

448.95 KB

Description:

Esd protection.
ESDZV201-1BF4 Datasheet 20 V low clamping, low capacitance single line bidirectional ESD protection 0201 package Product status link ESDZV201-1BF4 F.
