HCF4043B - QUAD 3-STATE R-S LATCHES

HCF4043B Description

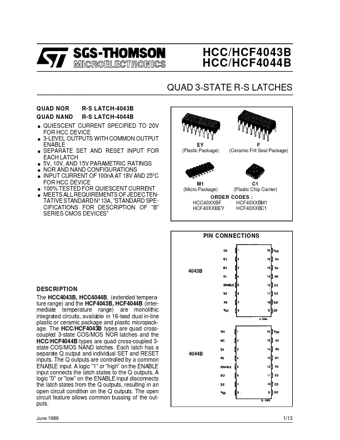

HCC/HCF4043B HCC/HCF4044B QUAD 3-STATE R-S LATCHES QUAD NOR QUAD NAND *...R-S LATCH-4043B R-S LATCH-4044B QUIESCENT CURRENT SPECIFIED TO.
OF ”B” SERIES CMOS DEVICES” EY (Plastic Package) F (Ceramic Frit Seal Package) M1 (Micro Package) C1 (Plastic Chip Carrier) ORDER CODES : HCC40XX.

HCF4043B Applications

* MULTIPLE BUS STORAGE. 7/13 HCC/HCF4043B/4044B TEST CIRCUITS Quiescent Device Current. Input Voltage. Input Current. Enable Propagation Delay Time and Waveforms. Test tPHZ t PLZ tPZH t P ZL Z = High impedance. IN VD D VS S VD D VS S IN VSS V DD VSS V DD A VS S V DD VS S V DD 8/13 HCC/HCF404
