IMSB300, TCPlink Development System

IMS B300 TCPlink Development System Ethernet transceiver OS-Links ST20450 Development Board AUI cable Ethernet cable IMS B300 TCPLink box Diagnost.
The IMS B300 TCPlink box is a self-contained unit providing four links and associated system services for connection to target subsystems.

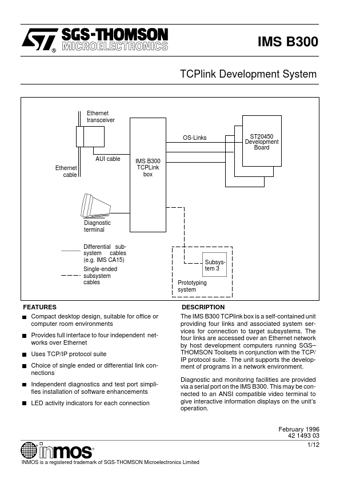

datasheet Preview Page 1 from Datasheet4u.com

IMSB300_STMicroelectronics.pdf

IMSB300 Datasheet Preview — Preview of IMSB300 PDF

Datasheet Details

Part number:

IMSB300

Manufacturer:

STMicroelectronics ↗

File Size:

286.80 KB

Description:

TCPlink Development System

Features

* Compact desktop design, suitable for office or computer room environments Provides full interface to four independent networks over Ethernet Uses TCP/IP protocol suite Choice of single ended or differential link connections Independent diagnostics and test port simplifies installation of software en

Applications

* in a networked environment. Up to four target systems can be connected to the IMS B300. These can be connected up via differential cables to a target with a differential interface, such as the ST20450 Development Board or via a single ended cable such as the IMS CA16. The facilities can be shared am
