L272, DUAL POWER OPERATIONAL AMPLIFIERS

® L272 DUAL POWER OPERATIONAL AMPLIFIERS .OUTPUT CURRENT TO 1 A .OPERATES AT LOW VOLTAGES .SINGLE OR SPLIT SUPPLY .LARGE COMMON-MODE AND DIFFERE.
The L272 is a monolithic integrated circuits in Powerdip, Minidip and SO packages intended for use as power operational amplifiers in a wide range of.

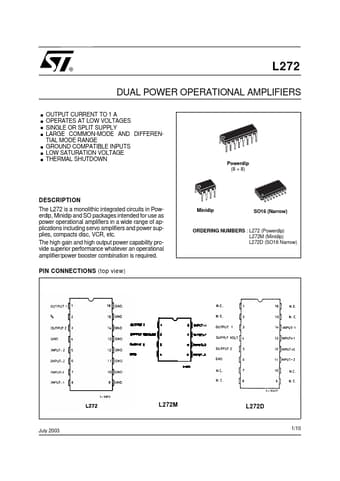

datasheet Preview Page 1 from Datasheet4u.com

L272_STMicroelectronics.pdf

L272 Datasheet Preview — Preview of L272 PDF

Datasheet Details

Part number:

L272

Manufacturer:

STMicroelectronics ↗

File Size:

891.35 KB

Description:

DUAL POWER OPERATIONAL AMPLIFIERS

Applications

* including servo amplifiers and power supplies, compacts disc, VCR, etc. The high gain and high output power capability provide superior performance whatever an operational amplifier/power booster combination is required. PIN CONNECTIONS (top view) Minidip SO16 (Narrow) ORDERING NUMBERS : L272 (Po
