L4805

VERY LOWDROP VOLTAGE REGULATORS

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor DCOMPONENTS AMSRL-4805Z DC DC CONVERTER 5V 2.5W DigiKey 40 500 units
$7.66

L4805 Datasheet (138.14 KB)

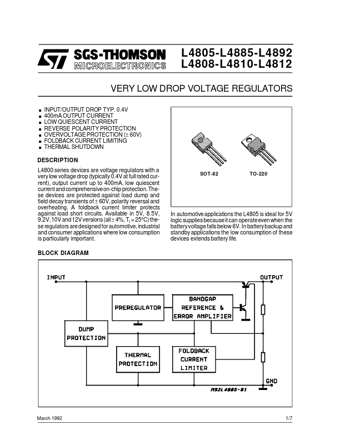

Preview of L4805 PDF

Datasheet Details

Part number:

L4805

Manufacturer:

STMicroelectronics ↗

File Size:

138.14 KB

Description:

Very lowdrop voltage regulators.
L4805-L4885-L4892 L4808-L4810-L4812 VERY LOW DROP VOLTAGE REGULATORS . . . . . . . INPUT/OUTPUT DROP TYP. 0.4V 400mA OUTPUT CURRENT LOW QUIESCENT CU.

L4805 General Description

L4800 series devices are voltage regulators with a very low voltage drop (typically 0.4V at full rated current), output current up to 400mA, low quiescent current and comprehensiveon-chip protection.These devices are protected against load dump and field decay transients of ± 60V, polarity reversal .
