L484 MAGNETIC PICKUP IGNITION CONTROLLER

L484 MAGNETIC PICKUP IGNITION CONTROLLER . . . . . . . . . DIRECT DRIVING OF THE EXTERNAL DARLINGTON OPERATES WITH A WIDE RANGE OF MAGNETIC PICKUP TYPES CHARGING ANGLE (DWELL) CONTROL COIL CURRENT PEAK LIMITATION CONTINUOUS COIL CURRENT PROTECTION TACHOMETER SIGNAL OUTPUT EXTERNAL DARLINGTON OVERVOLTAGE PROTECTION LOAD DUMP AND REVERSE BATTERY PROTECTION POSSIBILITY OF SPARK POINT DELAYING (ANTI KNOCK SYSTEM) special design which has two input pins from the pickup ; the first is the zero cros.

L484_STMicroelectronics.pdf

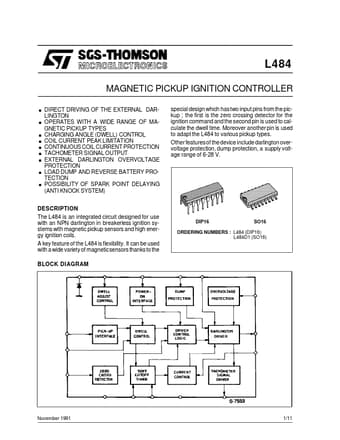

Preview of L484 PDF
L484 Datasheet Preview Page 2 L484 Datasheet Preview Page 3

Datasheet Details

Part number:

L484

Manufacturer:

STMicroelectronics ↗

File Size:

156.90 KB

Description:

Magnetic pickup ignition controller.
