L484D1 - MAGNETIC PICKUP IGNITION CONTROLLER

Datasheet Summary

Description

The L484 is an integrated circuit designed for use with an NPN darlington in breakerless ignition systems with magnetic pickup sensors and high energy ignition coils.

A key feature of the L484 is flexibility.

Features

  • of the device include darlington overvoltage protection, dump protection, a supply voltage range of 6-28 V.

📥 Download Datasheet

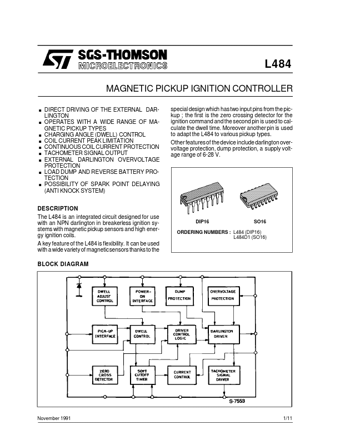

Datasheet preview – L484D1

Datasheet Details

Part number L484D1
Manufacturer STMicroelectronics
File Size 156.90 KB
Description MAGNETIC PICKUP IGNITION CONTROLLER
Datasheet download datasheet L484D1 Datasheet
Additional preview pages of the L484D1 datasheet.

📁 Similar Datasheet

  • L483EDT - CYLINDRICAL LED LAMPS (ETC)
  • L483GDT - CYLINDRICAL LED LAMPS (ETC)
  • L483HDT - CYLINDRICAL LED LAMPS (ETC)
  • L483IDT - CYLINDRICAL LED LAMPS (ETC)
  • L483SRSGW - CYLINDRICAL LED LAMPS (ETC)
  • L483YDT - CYLINDRICAL LED LAMPS (ETC)
  • L486 - IGBT Modules Sixpack/ H Bridge (IXYS Corporation)
  • L4863 - DUAL 2.2W AUDIO AMPLIFIER PLUS STEREO HEADPHONE FUNCTION (UTC)
  • L487 - Very Low Drop 5V Voltage Regulator (SGS-Ates)
Other Datasheets by STMicroelectronics
  • L484 - MAGNETIC PICKUP IGNITION CONTROLLER
  • L4805 - VERY LOWDROP VOLTAGE REGULATORS
  • L4808 - VERY LOWDROP VOLTAGE REGULATORS
  • L4810 - VERY LOWDROP VOLTAGE REGULATORS
  • L4812 - VERY LOWDROP VOLTAGE REGULATORS
  • L482 - HALL.EFFECT PICKUP IGNITION CONTROLLER
  • L482D1 - HALL.EFFECT PICKUP IGNITION CONTROLLER
  • L4885 - VERY LOWDROP VOLTAGE REGULATORS

Full PDF Text Transcription

Click to expand full text
L484 MAGNETIC PICKUP IGNITION CONTROLLER . . . . . . . . . DIRECT DRIVING OF THE EXTERNAL DARLINGTON OPERATES WITH A WIDE RANGE OF MAGNETIC PICKUP TYPES CHARGING ANGLE (DWELL) CONTROL COIL CURRENT PEAK LIMITATION CONTINUOUS COIL CURRENT PROTECTION TACHOMETER SIGNAL OUTPUT EXTERNAL DARLINGTON OVERVOLTAGE PROTECTION LOAD DUMP AND REVERSE BATTERY PROTECTION POSSIBILITY OF SPARK POINT DELAYING (ANTI KNOCK SYSTEM) special design which has two input pins from the pickup ; the first is the zero crossing detector for the ignition command and the second pin is used to calculate the dwell time. Moreover another pin is used to adapt the L484 to various pickup types. Other features of the device include darlington overvoltage protection, dump protection, a supply voltage range of 6-28 V.
