L482 - HALL.EFFECT PICKUP IGNITION CONTROLLER

Datasheet Summary

Description

The L482 is an integrated circuit designed for use with an NPN darlington in breakerless ignition systems with hall-effect pickup sensors and high energy ignition coils.

Features

o have sufficient time.

STMicroelectronics

📥 Download Datasheet

Datasheet Details

Part number	L482
Manufacturer	STMicroelectronics
File Size	169.22 KB
Description	HALL.EFFECT PICKUP IGNITION CONTROLLER
Datasheet	L482 Datasheet
Additional preview pages of the L482 datasheet.

📁 Similar Datasheet

L483EDT - CYLINDRICAL LED LAMPS (ETC)
L483GDT - CYLINDRICAL LED LAMPS (ETC)
L483HDT - CYLINDRICAL LED LAMPS (ETC)
L483IDT - CYLINDRICAL LED LAMPS (ETC)
L483SRSGW - CYLINDRICAL LED LAMPS (ETC)
L483YDT - CYLINDRICAL LED LAMPS (ETC)
L486 - IGBT Modules Sixpack/ H Bridge (IXYS Corporation)
L4863 - DUAL 2.2W AUDIO AMPLIFIER PLUS STEREO HEADPHONE FUNCTION (UTC)
L487 - Very Low Drop 5V Voltage Regulator (SGS-Ates)

Other Datasheets by STMicroelectronics

L482D1 - HALL.EFFECT PICKUP IGNITION CONTROLLER
L4805 - VERY LOWDROP VOLTAGE REGULATORS
L4808 - VERY LOWDROP VOLTAGE REGULATORS
L4810 - VERY LOWDROP VOLTAGE REGULATORS
L4812 - VERY LOWDROP VOLTAGE REGULATORS
L484 - MAGNETIC PICKUP IGNITION CONTROLLER
L484D1 - MAGNETIC PICKUP IGNITION CONTROLLER
L4885 - VERY LOWDROP VOLTAGE REGULATORS

Full PDF Text Transcription

Click to expand full text

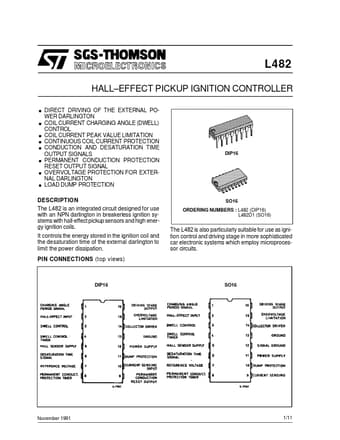

L482 HALL–EFFECT PICKUP IGNITION CONTROLLER . . . . . . . . DIRECT DRIVING OF THE EXTERNAL POWER DARLINGTON COIL CURRENT CHARGING ANGLE (DWELL) CONTROL COIL CURRENT PEAK VALUE LIMITATION CONTINUOUS COIL CURRENT PROTECTION CONDUCTION AND DESATURATION TIME OUTPUT SIGNALS PERMANENT CONDUCTION PROTECTION RESET OUTPUT SIGNAL OVERVOLTAGE PROTECTION FOR EXTERNAL DARLINGTON LOAD DUMP PROTECTION DIP16 DESCRIPTION The L482 is an integrated circuit designed for use with an NPN darlington in breakerless ignition systems with hall-effect pickup sensors and high energy ignition coils. It controls the energy stored in the ignition coil and the desaturation time of the external darlington to limit the power dissipation.
