L601

DARLINGTON ARRAYS

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part TDK-Lambda Corporation DRL60-12-1 AC/DC DIN RAIL SUPPLY 12V 60W DigiKey 405 1 units
$43.2

L601 Datasheet (59.13 KB)

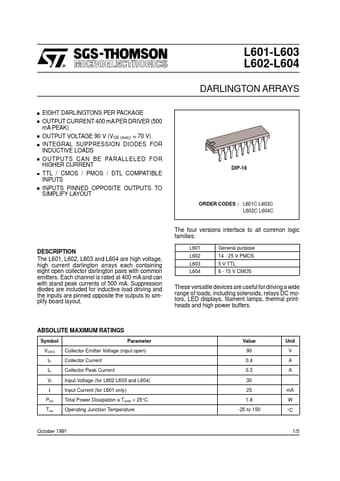

Preview of L601 PDF

Datasheet Details

Part number:

L601

Manufacturer:

STMicroelectronics ↗

File Size:

59.13 KB

Description:

Darlington arrays.
L601-L603 L602-L604 DARLINGTON ARRAYS EIGHT DARLINGTONS PER PACKAGE OUTPUT CURRENT 400 mA PER DRIVER (500 mA PEAK) OUTPUT VOLTAGE 90 V (VCE (sus)) = 7.

L601 General Description

The L601, L602, L603 and L604 are high voltage, high current darlington arrays each containing eight open collector darlington pairs with common emitters. Each channel is rated at 400 mA and can with stand peak currents of 500 mA. Suppression diodes are included for inductive load driving and the in.
