L603

DARLINGTON ARRAYS

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Advanced Thermal Solutions Inc ATS-EXL60-300-R0 HEATSINK AL6063 300X13.9X25MM DigiKey 5 500 units
$17.22

L603 Datasheet (67.02 KB)

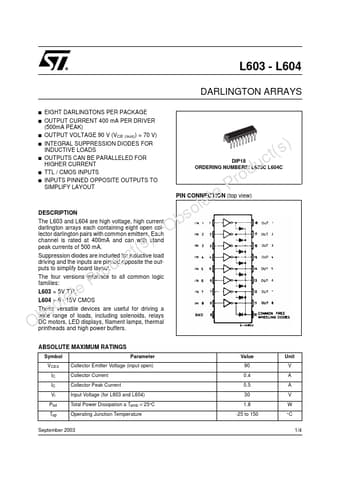

Preview of L603 PDF

Datasheet Details

Part number:

L603

Manufacturer:

STMicroelectronics ↗

File Size:

67.02 KB

Description:

Darlington arrays.
L603 - L604 DARLINGTON ARRAYS s EIGHT DARLINGTONS PER PACKAGE s OUTPUT CURRENT 400 mA PER DRIVER (500mA PEAK) s OUTPUT VOLTAGE 90 V (VCE (sus)) = .

L603 General Description

sThe L603 and L604 are high voltage, high current bdarlington arrays each containing eight open colOlector darlington pairs with common emitters. Each -channel is rated at 400mA and can with stand t(s)peak currents of 500 mA. Suppression diodes are included for inductive load cdriving and the inputs.
