L602

DARLINGTON ARRAYS

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Coilcraft Inc XGL6020-103MEC FIXED INDUCTOR 10UH SMD DigiKey 3077 500 units
$1.34

L602 Datasheet (59.13 KB)

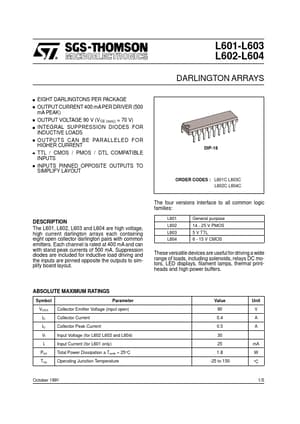

Preview of L602 PDF

Datasheet Details

Part number:

L602

Manufacturer:

STMicroelectronics ↗

File Size:

59.13 KB

Description:

Darlington arrays.
L601-L603 L602-L604 DARLINGTON ARRAYS EIGHT DARLINGTONS PER PACKAGE OUTPUT CURRENT 400 mA PER DRIVER (500 mA PEAK) OUTPUT VOLTAGE 90 V (VCE (sus)) = 7.

L602 General Description

The L601, L602, L603 and L604 are high voltage, high current darlington arrays each containing eight open collector darlington pairs with common emitters. Each channel is rated at 400 mA and can with stand peak currents of 500 mA. Suppression diodes are included for inductive load driving and the in.
