L7912CP, L7905ACV - Negative voltage regulators

STMicroelectronics

The L7912CP by STMicroelectronics is a Negative voltage regulators. Below is the official datasheet preview.

📥 Download Datasheet

L7912CP Negative voltage regulators by STMicroelectronics - Datasheet Preview — Official preview page of the **L7912CP** Negative voltage regulators datasheet (STMicroelectronics).

Datasheet Details

Part number	L7912CP, L7905ACV
Manufacturer	STMicroelectronics
File Size	544.28 KB
Description	Negative voltage regulators
Datasheet	L7905ACV-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: L7912CP, L7905ACV. Please refer to the document for exact specifications by model.

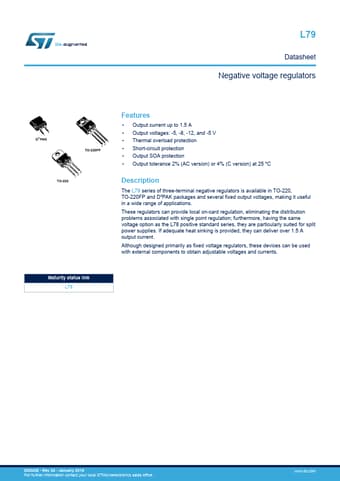

Additional preview pages of the L7912CP datasheet.

L7912CP Product details

Description

The L79 series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it useful in a wide range of applications.

Features

Output current up to 1.5 A.
Output voltages: -5, -8, -12, and -5 V.
Thermal overload protection.
Short-circuit protection.
Output transition SOA protection.
Output tolerance 2% (AC version) or 4% (C version) at 25 °C.
