L7912CV, L7905ACV, Negative voltage regulators

L79 REV 23 draft a Negative voltage regulators Datasheet - production data TAB 3 1 D2 PAK TAB 3 2 1 TO-220FP TO-220 3 12 .
The L79 series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it.

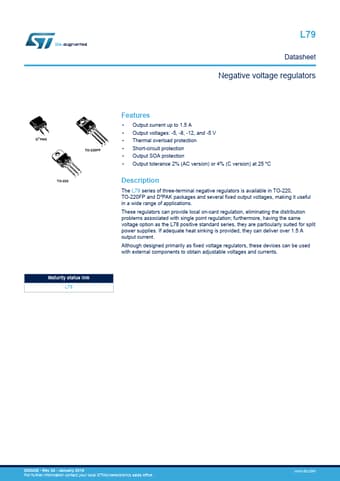

datasheet Preview Page 1 from Datasheet4u.com

L7905ACV-STMicroelectronics.pdf

L7912CV Datasheet Preview — This datasheet PDF includes multiple part numbers: L7912CV, L7905ACV. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

L7912CV, L7905ACV

Manufacturer:

STMicroelectronics ↗

File Size:

544.28 KB

Description:

Negative voltage regulators

Note:

This datasheet PDF includes multiple part numbers: L7912CV, L7905ACV.
Please refer to the document for exact specifications by model.

Features

* Output current up to 1.5 A
* Output voltages: -5, -8, -12, and -5 V
* Thermal overload protection
* Short-circuit protection
* Output transition SOA protection

Applications

* These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L78 positive standard series, they are particularly suited for split power supplies. If adequate heat sinking is p
