LE25AB, LE0 Datasheet - STMicroelectronics

LE25AB VERY LOW DROP VOLTAGE REGULATORS WITH INHIBIT

The LE00 regulator series are very Low Drop regulators available in SO-8 and TO-92 packages and in a wide range of output voltages. The very Low Drop voltage (0.2V) and the very low quiescent current make them particularly suitable for Low Noise Low Power applications and specially in battery powere.
® LE00AB/C SERIES VERY LOW DROP VOLTAGE REGULATORS WITH INHIBIT s s s s s s s s s VERY LOW DROPOUT VOLTAGE (0.2V TYP.) VERY LOW QUIESCENT CURRENT (TYP. 50µA IN OFF MODE, 0.5mA IN ON MODE, NO LOAD) OUTPUT CURRENT UP TO 100 mA OUTPUT VOLTAGES OF 1.25; 1.5; 2.5; 2.7; 3; 3.3; 3.5; 4; 4.5; 4.7; 5; 5.2; 5.5; 6; 8V INTERNAL CURRENT AND THERMAL LIMIT ONLY 2.2µF FOR STABILITY AVAILABLE IN ± 1% (A) OR ± 2% (C) SELECTION AT 25 oC SUPPLY VOLTAGE REJECTION: 80 db (TYP.) TEMPERATURE RANGE: -40 TO 125 oC.

LE0-0AB.pdf

This datasheet PDF includes multiple part numbers: LE25AB, LE0. Please refer to the document for exact specifications by model.

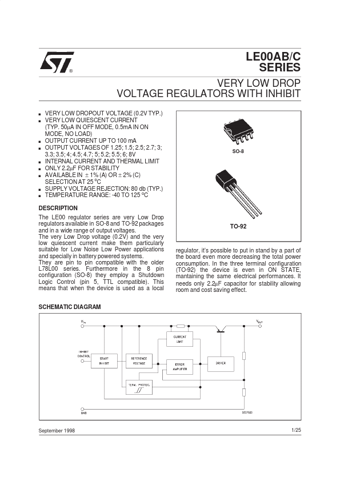

LE25AB Datasheet Preview Page 2 LE25AB Datasheet Preview Page 3

Datasheet Details

Part number:

LE25AB, LE0

Manufacturer:

STMicroelectronics ↗

File Size:

207.50 KB

Description:

Very low drop voltage regulators with inhibit.

Note:

This datasheet PDF includes multiple part numbers: LE25AB, LE0.
Please refer to the document for exact specifications by model.
