LE25ABZ VERY LOW DROP VOLTAGE REGULATORS WITH INHIBIT

The LE00 regulator series are very Low Drop regulators available in SO-8 and TO-92 packages and in a wide range of output voltages. The very Low Drop voltage (0.2V) and the very low quiescent current make them particularly suitable for Low Noise Low Power applications and specially in battery powere.

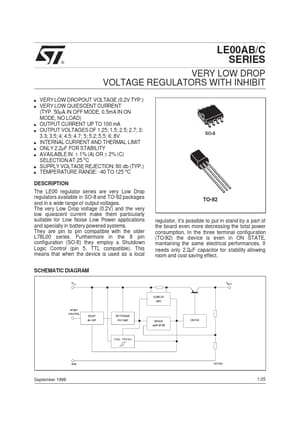

® LE00AB/C SERIES VERY LOW DROP VOLTAGE REGULATORS WITH INHIBIT s s s s s s s s s VERY LOW DROPOUT VOLTAGE (0.2V TYP.) VERY LOW QUIESCENT CURRENT (TYP. 50µA IN OFF MODE, 0.5mA IN ON MODE, NO LOAD) OUTPUT CURRENT UP TO 100 mA OUTPUT VOLTAGES OF 1.25; 1.5; 2.5; 2.7; 3; 3.3; 3.5; 4; 4.5; 4.7; 5; 5.2; 5.5; 6; 8V INTERNAL CURRENT AND THERMAL LIMIT ONLY 2.2µF FOR STABILITY AVAILABLE IN ± 1% (A) OR ± 2% (C) SELECTION AT 25 oC SUPPLY VOLTAGE REJECTION: 80 db (TYP.) TEMPERATURE RANGE: -40 TO 125 oC.
