LIS2DE12 - MEMS digital output motion sensor

LIS2DE12 Description

LIS2DE12 MEMS digital output motion sensor: ultra-low-power high-performance 3-axis "femto" accelerometer Datasheet - production data / *$ .
The LIS2DE12 is an ultra-low-power highperformance three-axis linear accelerometer belonging to the “femto” family with digital I2C/SPI serial interfa.

LIS2DE12 Features

* Wide supply voltage, 1.71 V to 3.6 V
* Independent IO supply (1.8 V) and supply voltage compatible
* Ultra-low power consumption down to 2 μA
* 2g/±4g/8g/16g selectable full scales
* I2C/SPI digital output interface
* 8-bit data output
* 2 independent programmable in

LIS2DE12 Applications

* Motion-activated functions
* Display orientation
* Shake control
* Pedometer
* Gaming and virtual reality input devices
* Impact recognition and logging January 2017 This is information on a product in full production. DocID027326 Rev 2 1/51 www. st. com Contents Contents

📥 Download Datasheet

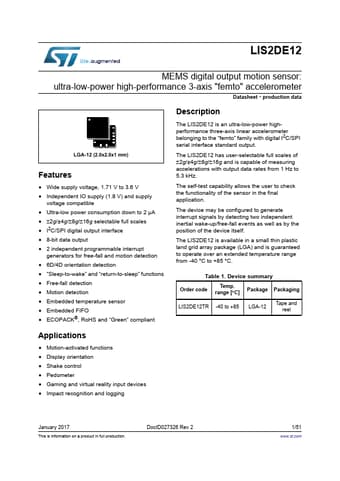

Preview of LIS2DE12 PDF
datasheet Preview Page 2 datasheet Preview Page 3
