LIS-1024D-LG - High Performance Linear CMOS Image Sensor

The LIS-1024 Image Sensor consist of an array of ultra low dark current photo-diode pixels with performance exceeding most Charge-Coupled Devices (CCD's).

The device has multiple read out modes, including: NonDestructive, Dynamic Pixel Reset™ (DPR), and Frame Reset.

The Non-destructive mode enables

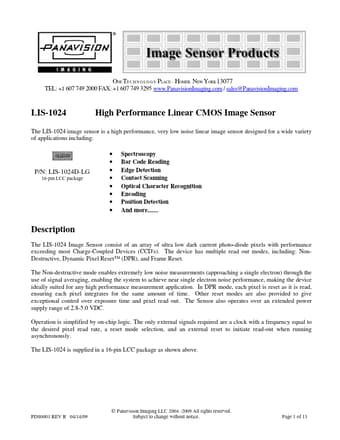

ONE TE C H N O L O G Y PLACE HOMER, NEW YORK 13077 TEL: +1 607 749 2000 FAX: +1 607 749 3295 www.PanavisionImaging.com / sales@PanavisionImaging.com LIS-1024 High Performance Linear CMOS Image Sensor The LIS-1024 image sensor is a high performance, very low noise linear image sensor designed for a wide variety of applications including: P/N: LIS-1024D-LG 16-pin LCC package Spectroscopy Bar Code Reading Edge Detection Contact Scanning

LIS-1024D-LG Features

* Low Cost

* Single Supply Operation

* Multiple read out modes

* Ultra Low Noise (≅ 1 e- via signal averaging)

* High Signal to Noise

* Non-Destructive read capable

* 1.0 kHz to 20.0 MHz Operation

* Very Low Dark Current

* Compl
