LIS-500

Line Scan Image Sensor

LIS-500 Features

* Single Supply Operation, 2.8 Volt to 3.3 Volt

* Low Cost Compared to CCD multi-chip systems

* High Sensitivity

* Simple operation: one clock and up to three control signals. 3900µ m

* On chip Fixed Pattern Noise (FPN) cancellation.

* Clamping

LIS-500 General Description

This high performance, ultra low power, low cost sensor is designed to meet the demanding needs for small cost effective decoding, position detection and feedback, OCR, and other applications. All that is needed to achieve video is a single low voltage power supply, a clock, and up to three control .

LIS-500 Datasheet (200.44 KB)

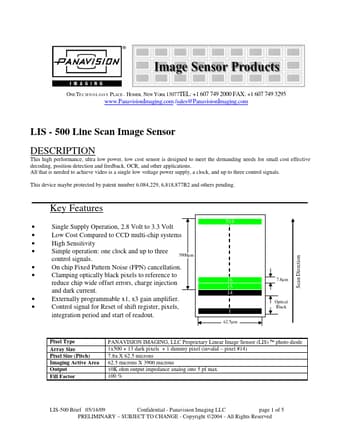

Preview of LIS-500 PDF

Datasheet Details

Part number:

LIS-500

Manufacturer:

Panavision Imaging

File Size:

200.44 KB

Description:

Line scan image sensor.
ONE TE C H N O L O G Y PLACE

* HOMER, NEW YORK 13077TEL: +1 607 749 2000 FAX: +1 607 749 3295 www.PanavisionImaging.com /sales@PanavisionImagi.
