LM211 Datasheet, Comparator, STMicroelectronics

LM211 Features

  • Comparator
  • Maximum input current: 150 nA
  • Maximum offset current: 20 nA
  • Differential input voltage range: ±30 V
  • Power consumption:135 mW at ±15 V
  • S

PDF File Details

Part number:

LM211

Manufacturer:

STMicroelectronics ↗

File Size:

303.50kb

Download:

📄 Datasheet

Description:

Voltage comparator. The LM211, LM311 are voltage comparators that have low input currents. They are also designed to operate over a wide range of supply

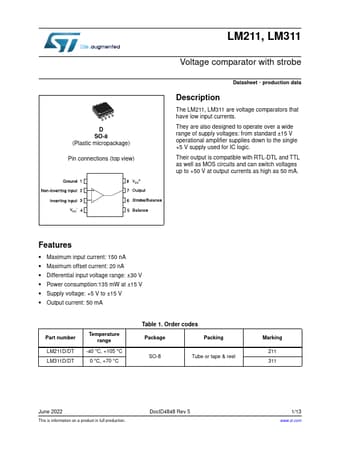

Datasheet Preview: LM211 📥 Download PDF (303.50kb)
Page 2 of LM211 Page 3 of LM211
