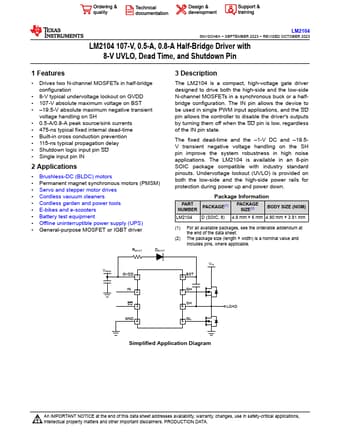

LM2104 Datasheet, Driver, Texas Instruments

LM2104 Features

• Driver
• Drives two N-channel MOSFETs in half-bridge configuration
• 8-V typical undervoltage lockout on GVDD
• 107-V absolute maximum voltage on BST
•
  &nbs

PDF File Details

Part number:

LM2104

Manufacturer:

Texas Instruments ↗

File Size:

1.11MB

Download:

📄 Datasheet

Description:

Half-bridge driver. The LM2104 is a compact, high-voltage gate driver designed to drive both the high-side and the low-side N-channel MOSFETs in a synch

LM2104 Application

• Applications
• Brushless-DC (BLDC) motors
• Permanent magnet synchronous motors (PMSM)
• Servo and stepper motor drives
