LM21215A-1 15A High Efficiency Synchronous Buck Regulator

LM21215A-1 Description

LM21215A-1 15A High Efficiency Synchronous Buck Regulator LM21215A-1 March 27, 2011 15A High Efficiency Synchronous Buck Regulator with Frequency S.
The LM21215A-1 is a monolithic synchronous buck regulator that is capable of delivering up to 15A of continuous output current while producing an outp.

LM21215A-1 Features

* internal over voltage protection (OVP) and over-current protection (OCP) for increased system reliability. A precision enable pin and integrated UVLO allow turn-on of the device to be tightly controlled and sequenced. Startup inrush currents are limited by both an internally fixed and externally adj

LM21215A-1 Applications

* Broadband, networking and wireless communications
* High-performance FPGAs, ASICs and microprocessors
* Simple to design, high efficiency point of load regulation from a 5V or 3.3V bus Simplified Application Circuit PowerWise® is a registered trademark of National Semiconductor Corpo

📥 Download Datasheet

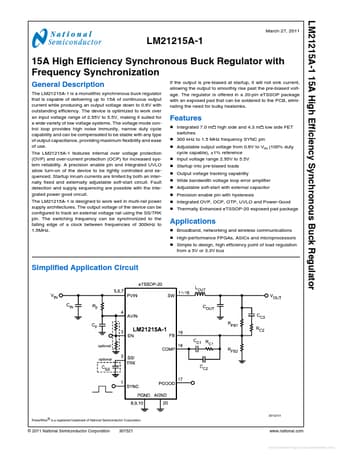

Preview of LM21215A-1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM21215A-1
Manufacturer
National Semiconductor
File Size
473.67 KB
Datasheet
LM21215A-1-NationalSemiconductor.pdf
Description
15A High Efficiency Synchronous Buck Regulator
