LM21212-2 - Voltage-Mode Synchronous Buck Regulator

Texas Instruments

📥 Download Datasheet

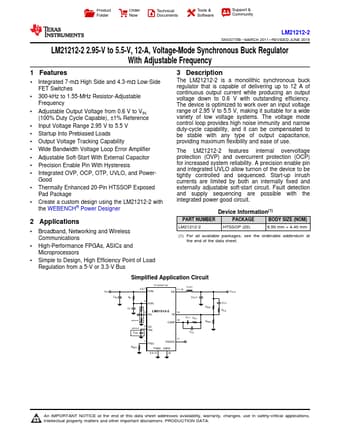

LM21212-2 Datasheet Preview — Preview of LM21212-2 PDF

Datasheet Details

Part number: LM21212-2
Manufacturer: Texas Instruments ↗
File Size: 1.19 MB
Datasheet: LM21212-2-etcTI.pdf
Description: Voltage-Mode Synchronous Buck Regulator

LM21212-2 Product details

Description

The LM21212-2 is a monolithic synchronous buck regulator that is capable of delivering up to 12 A of continuous output current while producing an output voltage down to 0.6 V with outstanding efficiency.

Features

1 Integrated 7-mΩ High Side and 4.3-mΩ Low-Side FET Switches.
300-kHz to 1.55-MHz Resistor-Adjustable Frequency.
Adjustable Output Voltage from 0.6 V to VIN (100% Duty Cycle Capable), ±1% Reference.
Input Voltage Range 2.95 V to 5.5 V.
Startup Into Prebiased Loads.
Output Voltage Tracking Capability.
Wide Bandwidth Voltage Loop Error Amplifier.
Adjustable Soft-Start With External Capacitor.
Precision Enable Pin With.
