LM21212-1 - Voltage-Mode Synchronous Buck Regulator

Texas Instruments

📥 Download Datasheet

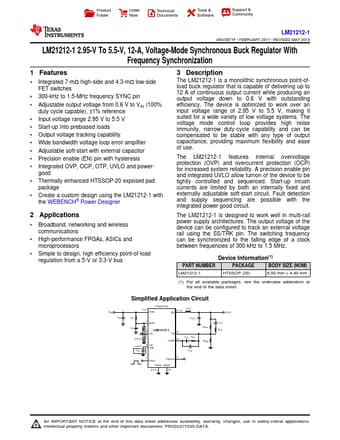

LM21212-1 Datasheet Preview — Preview of LM21212-1 PDF

Datasheet Details

Part number: LM21212-1
Manufacturer: Texas Instruments ↗
File Size: 1.17 MB
Datasheet: LM21212-1-etcTI.pdf
Description: Voltage-Mode Synchronous Buck Regulator

LM21212-1 Product details

Description

The LM21212-1 is a monolithic synchronous point-ofload buck regulator that is capable of delivering up to 12 A of continuous output current while producing an output voltage down to 0.6 V with outstanding efficiency.

Features

1 Integrated 7-mΩ high-side and 4.3-mΩ low-side FET switches.
300-kHz to 1.5-MHz frequency SYNC pin.
Adjustable output voltage from 0.6 V to VIN (100% duty cycle capable), ±1% reference.
Input voltage range 2.95 V to 5.5 V.
Start-up Into prebiased loads.
Output voltage tracking capability.
Wide bandwidth voltage loop error amplifier.
Adjustable soft-start with external capacitor.
Precision enable (EN) pin with hyste.
