M24512-DF, M24512-W 512-Kbit serial I2C bus EEPROM

STMicroelectronics

Description

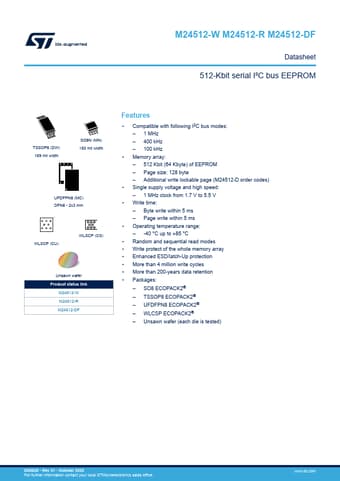

M24512-W M24512-R M24512-DF Datasheet 512-Kbit serial I²C bus EEPROM TSSOP8 (DW) 169 mil width SO8N (MN) 150 mil width UFDFPN8 (MC) DFN8 - 2x3 mm .
1 Description The M24512 is a 512-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 64 K × 8 bits.

📥 Download Datasheet

M24512-DF Datasheet Preview — This datasheet PDF includes multiple part numbers: M24512-DF, M24512-W. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: M24512-DF, M24512-W
Manufacturer: STMicroelectronics ↗
File Size: 732.79 KB
Datasheet: M24512-W-STMicroelectronics.pdf
Description: 512-Kbit serial I2C bus EEPROM
Note: This datasheet PDF includes multiple part numbers: M24512-DF, M24512-W.
Please refer to the document for exact specifications by model.

Features

* Compatible with following I2C bus modes:
* 1 MHz
* 400 kHz
* 100 kHz
* Memory array:
* 512 Kbit (64 Kbyte) of EEPROM
* Page size: 128 byte
* Additional write lockable page (M24512-D order codes)
* Single supply voltage and hig
