M24512-R, M24512-W Datasheet - STMicroelectronics

M24512-R - 512-Kbit serial I2C bus EEPROM

1 Description The M24512 is a 512-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 64 K × 8 bits.

The M24512-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24512-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M24512-DF can operat

M24512-R Features

* Compatible with following I2C bus modes:

* 1 MHz

* 400 kHz

* 100 kHz

* Memory array:

* 512 Kbit (64 Kbyte) of EEPROM

* Page size: 128 byte

* Additional write lockable page (M24512-D order codes)

* Single supply voltage and hig

M24512-W-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: M24512-R, M24512-W. Please refer to the document for exact specifications by model.

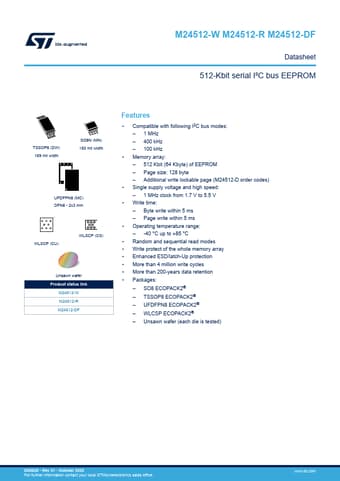

M24512-R Datasheet Preview Page 2 M24512-R Datasheet Preview Page 3

Datasheet Details

Part number:

M24512-R, M24512-W

Manufacturer:

STMicroelectronics ↗

File Size:

732.79 KB

Description:

512-kbit serial i2c bus eeprom.

Note:

This datasheet PDF includes multiple part numbers: M24512-R, M24512-W.
Please refer to the document for exact specifications by model.
