M24512-W - 512-Kbit serial I2C bus EEPROM

STMicroelectronics

📥 Download Datasheet

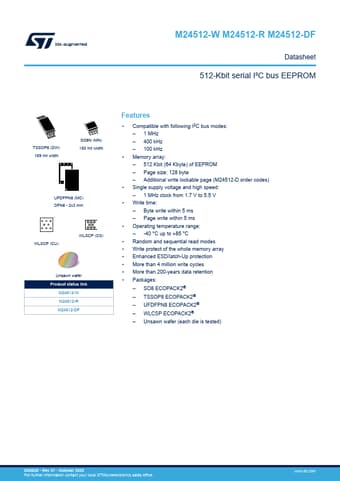

M24512-W Datasheet Preview — Preview of M24512-W PDF

Datasheet Details

Part number: M24512-W
Manufacturer: STMicroelectronics ↗
File Size: 732.79 KB
Datasheet: M24512-W-STMicroelectronics.pdf
Description: 512-Kbit serial I2C bus EEPROM

M24512-W Product details

Description

1 Description The M24512 is a 512-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 64 K × 8 bits.The M24512-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24512-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M24512-DF can operate with a supply voltage from 1.7 V to 5.5 V.All these devices operate with a clock frequency of 1 MHz (or less), over an ambient temperature range of 40 °C / +85 °C.

Features

Compatible with following I2C bus modes:.
1 MHz.
400 kHz.
100 kHz.
Memory array:.
512 Kbit (64 Kbyte) of EEPROM.
Page size: 128 byte.
Additional write lockable page (M24512-D order codes).
Single supply voltage and high speed:.
1 MHz clock from 1.7 V to 5.5 V.
Write time:.
Byte write within 5 ms.
Page write within 5 ms.
Operating temperature range:.
-40 °C up to.
