M27C202, 2 Mbit 128Kb x16 UV EPROM and OTP EPROM

M27C202 2 Mbit (128Kb x16) UV EPROM and OTP EPROM s 5V ± 10% SUPPLY VOLTAGE in READ OPERATION ACCESS TIME: 45ns LOW POWER CONSUMPTION: * Acti.
The M27C202 is a 2 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable).

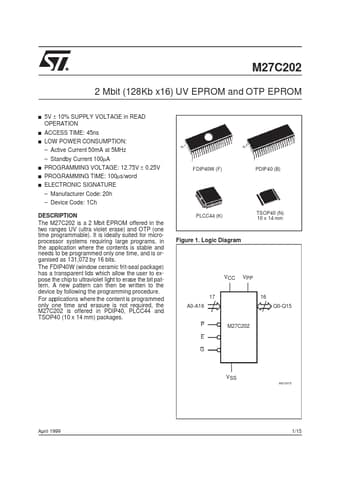

datasheet Preview Page 1 from Datasheet4u.com

M27C202_STMicroelectronics.pdf

M27C202 Datasheet Preview — Preview of M27C202 PDF

Datasheet Details

Part number:

M27C202

Manufacturer:

STMicroelectronics ↗

File Size:

102.54 KB

Description:

2 Mbit 128Kb x16 UV EPROM and OTP EPROM

Features

* a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. For the most efficient use of these two control lines, E should

Applications

* where the content is programmed only one time and erasure is not required, the M27C202 is offered in PDIP40, PLCC44 and TSOP40 (10 x 14 mm) packages. PLCC44 (K) TSOP40 (N) 10 x 14 mm Figure 1. Logic Diagram VCC VPP 17 A0-A16 16 Q0-Q15 P E G M27C202 VSS AI01815 April 1999 1/15 M27C202 Fi
