M27C320 - 32 Mbit 4Mb x8 or 2Mb x16 OTP EPROM

The M27C320 is a 32 Mbit EPROM offered in the OTP range (one time programmable).

It is ideally suited for microprocessor systems requiring large data or program storage.

It is organised as either 4 MWords of 8 bit or 2 MWords of 16 bit.

The pinout is compatible with the 32 Mbit Mask ROM.

The M27C320

M27C320 32 Mbit (4Mb x8 or 2Mb x16) OTP EPROM PRELIMINARY DATA s 5V ± 10% SUPPLY VOLTAGE in READ OPERATION FAST ACCESS TIME: 80ns BYTE-WIDE or WORD-WIDE CONFIGURABLE 32 Mbit MASK ROM REPLACEMENT LOW POWER CONSUMPTION Active Current 70mA at 8MHz Stand-by Current 100mA 1 44 s s s s SO44 (M) s s PROGRAMMING VOLTAGE: 12V ± 0.25V PROGRAMMING TIME: 100µs/byte (typical)(PRESTO III Algorithm) ELECTRONIC SIGNATURE: Manufacturer Code 0020h Device Code: 0032h F

M27C320 Features

* a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. For the most efficient use of these two control lines, E should

M27C320_STMicroelectronics.pdf

Preview of M27C320 PDF

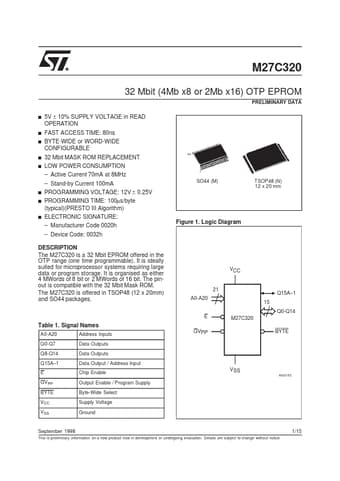

M27C320 Datasheet Preview Page 2 M27C320 Datasheet Preview Page 3
