- Description
- 32 Mbit 2Mb x16 UV EPROM and OTP EPROM
M27C322 Description

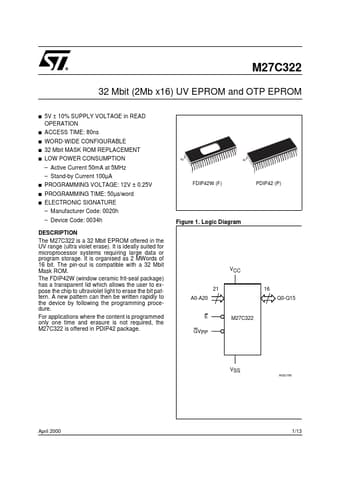

M27C322 32 Mbit (2Mb x16) UV EPROM and OTP EPROM s 5V ± 10% SUPPLY VOLTAGE in READ OPERATION ACCESS TIME: 80ns WORD-WIDE CONFIGURABLE 32 Mbit MASK RO.
The M27C322 is a 32 Mbit EPROM offered in the UV range (ultra violet erase).
M27C322 Features
* a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. For the most efficient use of these two control lines, E should
M27C322 Applications
* where the content is programmed only one time and erasure is not required, the M27C322 is offered in PDIP42 package. VCC
21 A0-A20
16 Q0-Q15
E GVPP
M27C322
VSS
AI02156
April 2000
1/13
M27C322
Figure 2A. DIP Connections
A18 A17 A7 A6 A5 A4 A3 A2 A1 A0 E VSS GVPP Q0 Q8 Q1 Q9 Q2 Q10 Q3 Q11 1 4
