M27C800 8 Mbit 1Mb x8 or 512Kb x16 UV EPROM and OTP EPROM

📥 Download Datasheet Datasheet Preview Page 1

Description

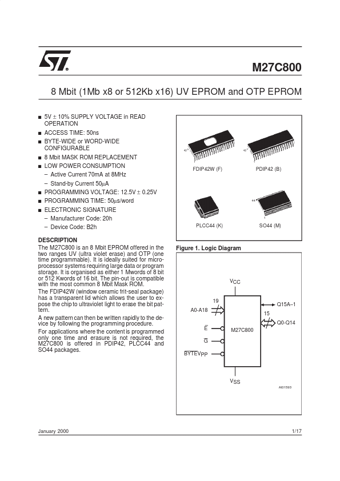

M27C800 8 Mbit (1Mb x8 or 512Kb x16) UV EPROM and OTP EPROM s 5V ± 10% SUPPLY VOLTAGE in READ OPERATION ACCESS TIME: 50ns BYTE-WIDE or WORD-WIDE CONF.
The M27C800 is an 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable).

📥 Download Datasheet

Preview of M27C800 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* ide Read Mode AC Waveforms A0-A18 VALID tAVQV tAXQX VALID E tGLQV G tELQV Q0-Q15 tGHQZ Hi-Z tEHQZ AI01596B Note: BYTEV PP

Applications

* where the content is programmed only one time and erasure is not required, the M27C800 is offered in PDIP42, PLCC44 and SO44 packages. Figure 1. Logic Diagram VCC 19 A0-A18 15 Q15A
* 1 Q0-Q14 E G BYTEVPP M27C800 VSS AI01593 January 2000 1/17 M27C800 Figure 2A. DIP Connections A18 A17
