M29DW324DB, M29DW324DT - 32 Mbit 3V Supply Flash Memory

M29DW324DB Description

M29DW324DT M29DW324DB 32 Mbit (4Mb x8 or 2Mb x16, Dual Bank, Boot Block) 3V Supply Flash Memory PRELIMINARY DATA .

M29DW324DB Features

* SUMMARY s SUPPLY VOLTAGE
* VCC = 2.7V to 3.6V for Program, Erase and Read
* VPP =12V for Fast Program (optional) s ACCESS TIME: 70, 90ns s PROGRAMMING TIME
* 10µs per Byte/Word typical
* Double Word/ Quadruple Byte Program s MEMORY BLOCKS
* Dual Bank Memory Ar

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M29DW324DB, M29DW324DT. Please refer to the document for exact specifications by model.

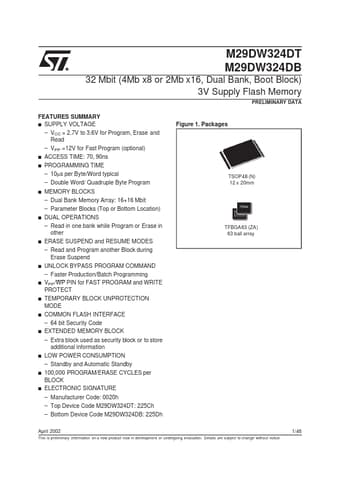

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M29DW324DB, M29DW324DT
Manufacturer
STMicroelectronics ↗
File Size
268.76 KB
Datasheet
M29DW324DT-STMicroelectronics.pdf
Description
32 Mbit 3V Supply Flash Memory
Note
This datasheet PDF includes multiple part numbers: M29DW324DB, M29DW324DT.
Please refer to the document for exact specifications by model.
