M29F400BT - 4-Mbit Single Supply Flash Memory

Datasheet Summary

Description

The M29F400B is a 4 Mbit (512Kb x8 or 256Kb x16) non-volatile memory that can be read, erased and reprogrammed.

These operations can be performed using a single 5V supply.

On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM.

📥 Download Datasheet

Datasheet preview – M29F400BT

Datasheet Details

Part number M29F400BT
Manufacturer STMicroelectronics
File Size 143.74 KB
Description 4-Mbit Single Supply Flash Memory
Datasheet download datasheet M29F400BT Datasheet
Additional preview pages of the M29F400BT datasheet.

📁 Similar Datasheet

  • M29F400B - 4 Mbit 512Kb x8 or 256Kb x16 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F400FB - Micron Parallel NOR Flash Embedded Memory (Micron)
  • M29F400FB - (M29Fxx0Fx) Top / Bottom Boot Block 5 V Supply Flash Memory (Numonyx)
  • M29F400FT - Micron Parallel NOR Flash Embedded Memory (Micron)
  • M29F400FT - (M29Fxx0Fx) Top / Bottom Boot Block 5 V Supply Flash Memory (Numonyx)
  • M29F400T - 4 Mbit 512Kb x8 or 256Kb x16 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F002B - 2 Mbit 256Kb x8 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F002BB - 2 Mbit 256Kb x8 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F002BNT - 2 Mbit 256Kb x8 / Boot Block Single Supply Flash Memory (ST Microelectronics)
  • M29F002BT - 2 Mbit 256Kb x8 / Boot Block Single Supply Flash Memory (ST Microelectronics)
Other Datasheets by STMicroelectronics
  • M29F400BB - 4-Mbit Single Supply Flash Memory
  • M29DW323DB - 32 Mbit 3V Supply Flash Memory
  • M29DW323DT - 32 Mbit 3V Supply Flash Memory
  • M29DW324DB - 32 Mbit 3V Supply Flash Memory
  • M29DW324DT - 32 Mbit 3V Supply Flash Memory
  • M29DW640F - 64 Mbit 3V Supply Flash Memory
  • M29W116BB - 16 Mbit Low Voltage Single Supply Flash Memory
  • M29W116BT - 16 Mbit Low Voltage Single Supply Flash Memory

Full PDF Text Transcription

Click to expand full text

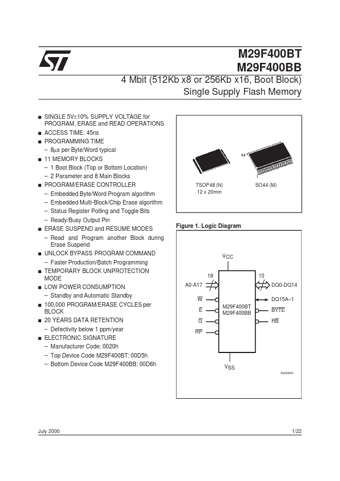

M29F400BT M29F400BB 4 Mbit (512Kb x8 or 256Kb x16, Boot Block) Single Supply Flash Memory s SINGLE 5V±10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS s ACCESS TIME: 45ns s PROGRAMMING TIME – 8µs per Byte/Word typical s 11 MEMORY BLOCKS – 1 Boot Block (Top or Bottom Location) – 2 Parameter and 8 Main Blocks s PROGRAM/ERASE CONTROLLER – Embedded Byte/Word Program algorithm – Embedded Multi-Block/Chip Erase algorithm – Status Register Polling and Toggle Bits – Ready/Busy Output Pin s ERASE SUSPEND and RESUME MODES – Read and Program another Block during Erase Suspend s UNLOCK BYPASS PROGRAM COMMAND – Faster Production/Batch Programming s TEMPORARY BLOCK UNPROTECTION MODE s LOW POWER CONSUMPTION – Standby and Automatic Standby s 100,000 PROGRAM/ERASE CYCLES per BLOCK s 20 YEARS DATA
