M29F002BB Datasheet - ST Microelectronics

M29F002BB 2 Mbit 256Kb x8 / Boot Block Single Supply Flash Memory

The M29F002B is a 2 Mbit (256Kb x8) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single 5V supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The M29F002B is fully backward compa.

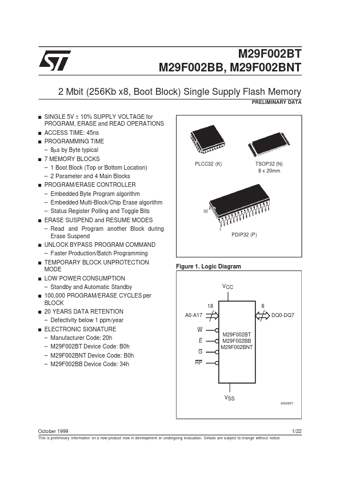

M29F002BT M29F002BB, M29F002BNT 2 Mbit (256Kb x8, Boot Block) Single Supply Flash Memory PRELIMINARY DATA s SINGLE 5V ± 10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS ACCESS TIME: 45ns PROGRAMMING TIME 8µs by Byte typical 7 MEMORY BLOCKS 1 Boot Block (Top or Bottom Location) 2 Parameter and 4 Main Blocks PLCC32 (K) TSOP32 (N) 8 x 20mm s s s s PROGRAM/ERASE CONTROLLER Embedded Byte Program algorithm Embedded Multi-Block/Chip Erase .

M29F002BB Features

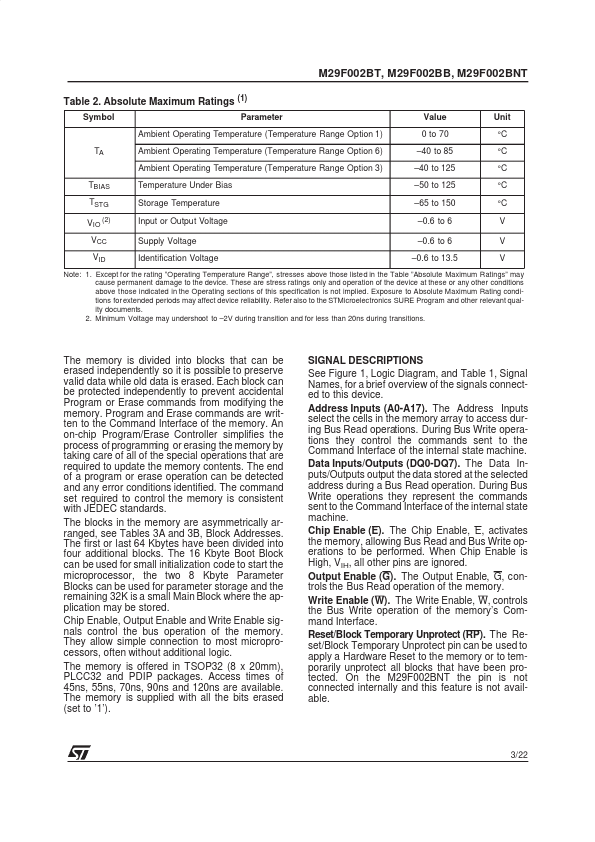

* iming requirements. Output Disable. The Data Inputs/Outputs are in the high impedance state when Output Enable

M29F002BB Datasheet (142.47 KB)

M29F002BB Datasheet Preview — Preview of M29F002BB PDF

Datasheet Details

Part number:

M29F002BB

Manufacturer:

STMicroelectronics ↗

File Size:

142.47 KB

Description:

2 mbit 256kb x8 / boot block single supply flash memory.
