M29F002T - 2 Mbit 256Kb x8 / Boot Block Single Supply Flash Memory

The M29F002 is a non-volatile memory that may be erased electrically at the block or chip level and programmed in-system on a Byte-by-Byte basis using only a single5V VCC supply.For Program and Erase operations the necessary high voltages are generated internally.

The device can also be programmed i

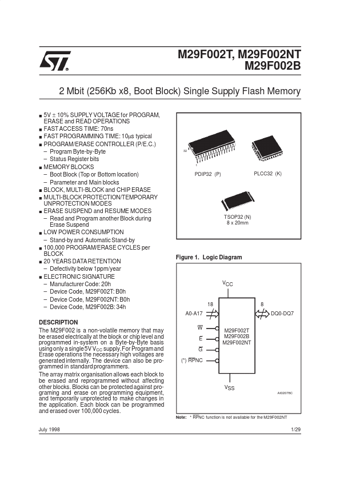

M29F002T, M29F002NT M29F002B 2 Mbit (256Kb x8, Boot Block) Single Supply Flash Memory 5V ± 10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS FAST ACCESS TIME: 70ns FAST PROGRAMMING TIME: 10µs typical PROGRAM/ERASE CONTROLLER (P/E.C.) Program Byte-by-Byte Status Register bits MEMORY BLOCKS Boot Block (Top or Bottom location) Parameter and Main blocks BLOCK, MULTI-BLOCK and CHIP ERASE MULTI-BLOCK PROTECTION/TEMPORARY UNPROTECTION MODES ERASE SUSPEND

M29F002T Features

* or the Erase Timer bit DQ3. Outputs are valid when Chip Enable E and Output Enable G are active. The out
