M29F400BB, M29F400BT Datasheet - STMicroelectronics

M29F400BB 4-Mbit Single Supply Flash Memory

The M29F400B is a 4 Mbit (512Kb x8 or 256Kb x16) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single 5V supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The M29F400B is fully b.

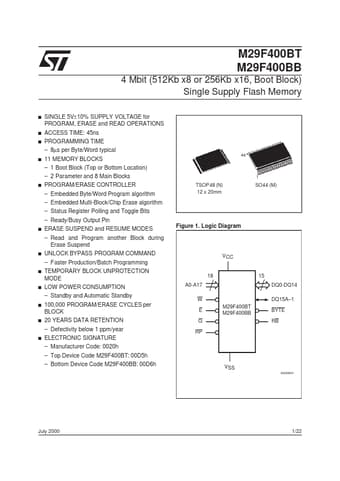

M29F400BT M29F400BB 4 Mbit (512Kb x8 or 256Kb x16, Boot Block) Single Supply Flash Memory s SINGLE 5V±10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS s ACCESS TIME: 45ns s PROGRAMMING TIME 8µs per Byte/Word typical s 11 MEMORY BLOCKS 1 Boot Block (Top or Bottom Location) 2 Parameter and 8 Main Blocks s PROGRAM/ERASE CONTROLLER Embedded Byte/Word Program algorithm Embedded Multi-Block/Chip Erase algorithm Status Register Polli.

M29F400BT-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: M29F400BB, M29F400BT. Please refer to the document for exact specifications by model.
M29F400BB Datasheet Preview Page 2 M29F400BB Datasheet Preview Page 3

Datasheet Details

Part number:

M29F400BB, M29F400BT

Manufacturer:

STMicroelectronics ↗

File Size:

143.74 KB

Description:

4-mbit single supply flash memory.

Note:

This datasheet PDF includes multiple part numbers: M29F400BB, M29F400BT.
Please refer to the document for exact specifications by model.
