M95040-DF, M95040-W - SPI bus EEPROM

M95040-DF Description

M950x0-W M950x0-R M950x0-DF Datasheet 4 Kbit, 2 Kbit and 1 Kbit serial SPI bus EEPROM with high-speed clock SO8N (150 mil width) TSSOP8 (169 mil widt.
1 Description The M95010/M95020/M95040 devices (M950x0) are electrically erasable programmable memories (EEPROMs) organized as 128/256/512 x 8 bits.

M95040-DF Features

* Compatible with the serial peripheral interface (SPI) bus
* Memory array
* 1/2/4-Kbit (128/256/512 bytes) of EEPROM
* Page size: 16 bytes
* Additional write lockable page (Identification page) for M95040-DF order code
* Write
* Byte Write wit

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M95040-DF, M95040-W. Please refer to the document for exact specifications by model.

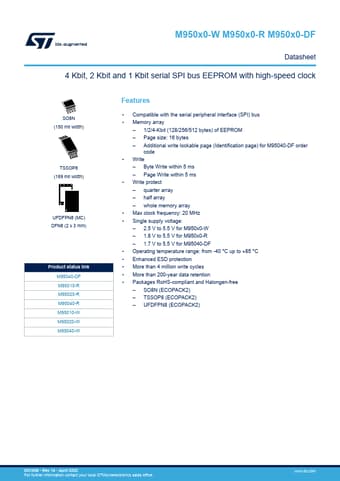

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M95040-DF, M95040-W
Manufacturer
STMicroelectronics ↗
File Size
929.47 KB
Datasheet
M95040-W-STMicroelectronics.pdf
Description
SPI bus EEPROM
Note
This datasheet PDF includes multiple part numbers: M95040-DF, M95040-W.
Please refer to the document for exact specifications by model.
