M95040-R, M95040-W SPI bus EEPROM

STMicroelectronics

Description

M950x0-W M950x0-R M950x0-DF Datasheet 4 Kbit, 2 Kbit and 1 Kbit serial SPI bus EEPROM with high-speed clock SO8N (150 mil width) TSSOP8 (169 mil widt.
1 Description The M95010/M95020/M95040 devices (M950x0) are electrically erasable programmable memories (EEPROMs) organized as 128/256/512 x 8 bits.

📥 Download Datasheet

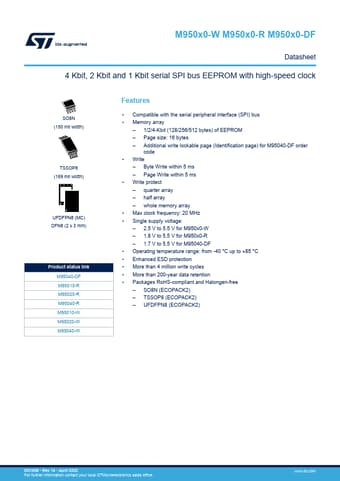

M95040-R Datasheet Preview — This datasheet PDF includes multiple part numbers: M95040-R, M95040-W. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: M95040-R, M95040-W
Manufacturer: STMicroelectronics ↗
File Size: 929.47 KB
Datasheet: M95040-W-STMicroelectronics.pdf
Description: SPI bus EEPROM
Note: This datasheet PDF includes multiple part numbers: M95040-R, M95040-W.
Please refer to the document for exact specifications by model.

Features

* Compatible with the serial peripheral interface (SPI) bus
* Memory array
* 1/2/4-Kbit (128/256/512 bytes) of EEPROM
* Page size: 16 bytes
* Additional write lockable page (Identification page) for M95040-DF order code
* Write
* Byte Write wit
