M95512

512-Kbit Serial SPI Bus EEPROM

STMicroelectronics

M95512 Features

* Compatible with the serial peripheral interface (SPI) bus

* Memory array

* 512-Kbit (64-Kbyte) of EEPROM

* Page size: 128 bytes

* Additional write lockable page (Identification page)

* Write time

* Byte Write within 5 ms

* Page Write

M95512 General Description

1 Description The M95512 devices are electrically erasable programmable memories (EEPROMs) organized as 65536 x 8 bits, accessed through the SPI bus. The M95512-W can operate with a supply voltage from 2.5 V to 5.5 V, the M95512-R can operate with a supply voltage from 1.8 V to 5.5 V and the M955.

M95512 Datasheet (580.22 KB)

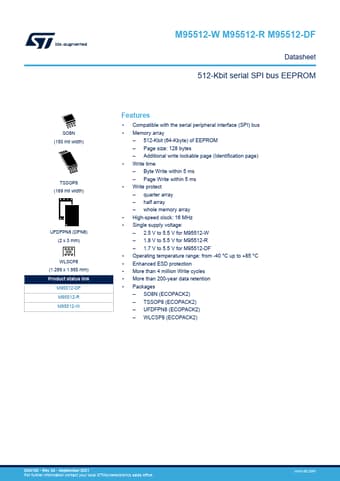

M95512 Datasheet Preview — Preview of M95512 PDF

Datasheet Details

Part number:

M95512

Manufacturer:

STMicroelectronics ↗

File Size:

580.22 KB

Description:

512-kbit serial spi bus eeprom.
M95512-W M95512-R M95512-DF Datasheet 512-Kbit serial SPI bus EEPROM SO8N (150 mil width) TSSOP8 (169 mil width) UFDFPN8 (DFN8) (2 x 3 mm) WLSCP8 (1..
