M95P32-I - Ultra low power 32-Mbit EEPROM

STMicroelectronics

M95P32-I Datasheet Preview — Preview of M95P32-I PDF

Datasheet Details

Part number	M95P32-I
Manufacturer	STMicroelectronics ↗
File Size	2.32 MB
Description	Ultra low power 32-Mbit EEPROM
Datasheet	M95P32-I-STMicroelectronics.pdf

M95P32-I Product details

Description

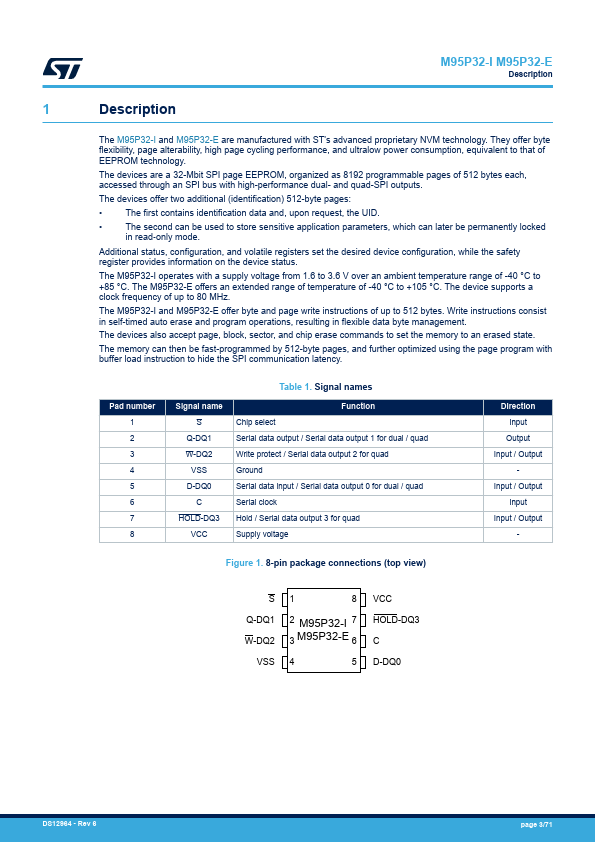

1 Description The M95P32-I and M95P32-E are manufactured with ST's advanced proprietary NVM technology.They offer byte flexibility, page alterability, high page cycling performance, and ultralow power consumption, equivalent to that of EEPROM technology.The devices are a 32-Mbit SPI page EEPROM, organized as 8192 programmable pages of 512 bytes each, accessed through an SPI bus with high-performance dual- and quad-SPI outputs.The devices offer two additional (identification) 512-byte pag

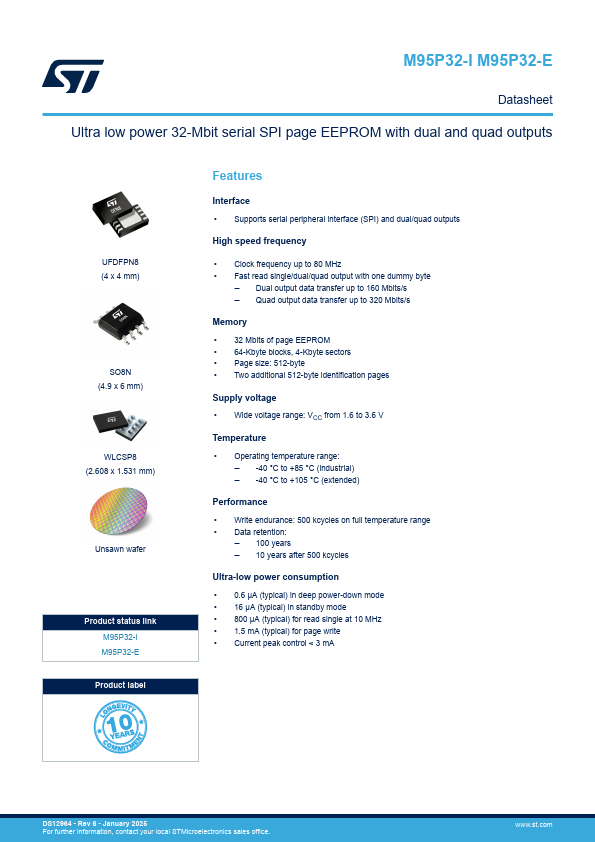

Features

Interface.
Supports serial peripheral interface (SPI) and dual/quad outputs High speed frequency.
Clock frequency up to 80 MHz.
Fast read single/dual/quad output with one dummy byte.
Dual output data transfer up to 160 Mbits/s.
Quad output data transfer up to 320 Mbits/s Memory.
32 Mbits of page EEPROM.
64-Kbyte blocks, 4-Kbyte sectors.
Page size: 512-byte.
Two additional 512-byte identification pages Supply voltage.
