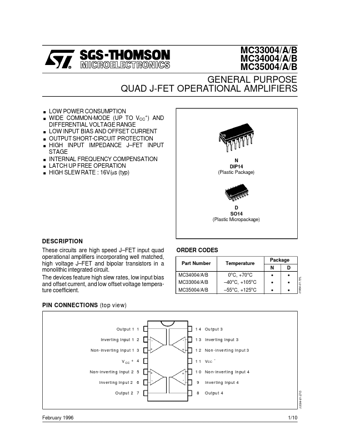

MC33004/A/B MC34004/A/B MC35004/A/B
GENERAL PURPOSE QUAD J-FET OPERATIONAL AMPLIFIERS
. LOW POWER CONSUMPTION . WIDE COMMON-MODE (UP TO VCC+) AND
DIFFERENTIAL VOLTAGE RANGE
. LOW INPUT BIAS AND OFFSET CURRENT . OUTPUT SHORT-CIRCUIT PROTECTION . HIGH INPUT IMPEDANCE J–FET INPUT
STAGE
. INTERNAL FREQUENCY COMPENSATION . LATCH UP FREE OPERATION . HIGH SLEW RATE : 16V/µs (typ)
N DIP14 (Plastic Package)
D SO14 (Plastic Micropackage)
DE SC RI P TI O N
These circuits are high speed J–FET input quad operational amplifiers incorporating well matched, high voltage J–FET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
