MTP15N05L - N-Channel MOSFET

MTP15N05L Description

TYPE MTP15N05L MTP15N05LFI MTP15N06L MTP15N06LFI MTP15N05L/FI MTP15N06L/FI N - CHANNEL ENHANCEMENT MODE LOW THRESHOLD POWER MOS TRANSISTORS PRELIMI.

MTP15N05L Applications

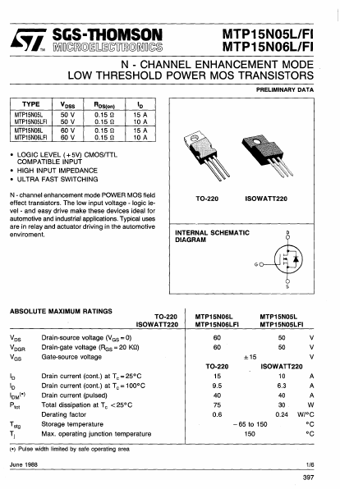

* Typical uses are in relay and actuator driving in the automotive enviroment. TO-220 ISOWATT220 INTERNAL SCHEMATIC DIAGRAM 5 ABSOLUTE MAXIMUM RATINGS TO-220 ISOWATT220 Vos VOGR VGS Drain-source voltage (VGS =0) Drain-gate voltage (RGS =20 K{}) Gate-source voltage 10 10 10M(e) Ptot T stg Tj
