P11NK50Z, P11NK50ZFP STP11NK50Z

P11NK50Z Description

STB11NK50Z - STP11NK50ZFP STP11NK50Z N-channel 500 V, 0.48 Ω , 10 A TO-220, TO-220FP, D2PAK Zener-protected SuperMESHTM Power MOSFET .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

P11NK50Z Features

* Type STB11NK50Z STP11NK50ZFP STP11NK50Z VDSS 500 V 500 V 500 V RDS(on) max ID Pw < 0.52 Ω 10 A 125 W < 0.52 Ω 10 A 30 W < 0.52 Ω 10 A 125 W
* Extremely high dv/dt capability
* 100% avalanche tested
* Gate charge minimized

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: P11NK50Z, P11NK50ZFP. Please refer to the document for exact specifications by model.

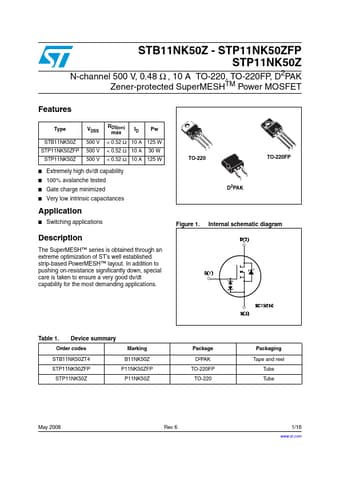

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P11NK50Z, P11NK50ZFP
Manufacturer
STMicroelectronics ↗
File Size
380.34 KB
Datasheet
P11NK50ZFP_STMicroelectronics.pdf
Description
STP11NK50Z
Note
This datasheet PDF includes multiple part numbers: P11NK50Z, P11NK50ZFP.
Please refer to the document for exact specifications by model.
