SD4933

HF/VHF/UHF RF power N-channel MOSFET

SD4933 Features

* Improved ruggedness V(BR)DSS > 200 V

* Excellent thermal stability

* 20:1 all phases load mismatch capability

* POUT = 300 W min. with 24 dB gain @ 30 MHz

* In compliance with the 2002/95/EEC European directive Description The SD4933 is an N-channel MOS fiel

SD4933 General Description

The SD4933 is an N-channel MOS field-effect RF power transistor. It is intended for use in 50 V ISM applications up to 100 MHz. 4 3 1. Drain 2. Source 1 5 2 3. Gate 4. Source 5. Source Table 1. Device summary Order code Marking Base qty. Package SD4933 SD4933(1) 25 pcs M177 1. For more d.

SD4933 Datasheet (706.38 KB)

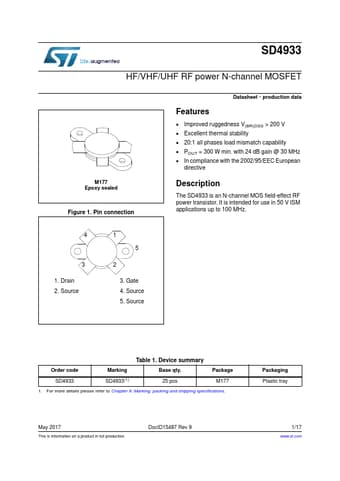

Preview of SD4933 PDF

Datasheet Details

Part number:

SD4933

Manufacturer:

STMicroelectronics ↗

File Size:

706.38 KB

Description:

Hf/vhf/uhf rf power n-channel mosfet.
