STAC0912-250

LDMOS avionics radar transistor

STAC0912-250 Features

* Order code Frequency VDD POUT STAC0912-250 960 to 1215 MHz 28 V 250 W

* Excellent thermal stability

* Common source configuration

* POUT = 250W with 16 dB gain over 960 to 1215 MHz

* ST air-cavity STAC packaging technology Gain 16 dB Efficiency 58 % Applic

STAC0912-250 General Description

The STAC0912-250 is a common source N-channel enhancement-mode lateral fieldeffect RF power transistor designed for avionics applications at frequencies range 960 to 1215 MHz. Pin connection Pin Connection 1 Drain 2 Gate 3 Source (bottom side) Product status link STAC0912-250 Product summary Ord.

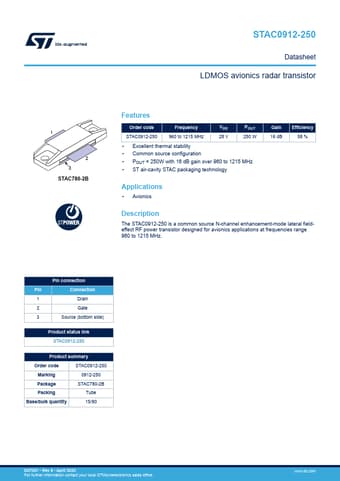

STAC0912-250 Datasheet (643.68 KB)

Preview of STAC0912-250 PDF

Datasheet Details

Part number:

STAC0912-250

Manufacturer:

STMicroelectronics ↗

File Size:

643.68 KB

Description:

Ldmos avionics radar transistor.
