STD7N60M2 N-channel Power MOSFET

These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, these devices exhibit low on-resistance and optimized swit.

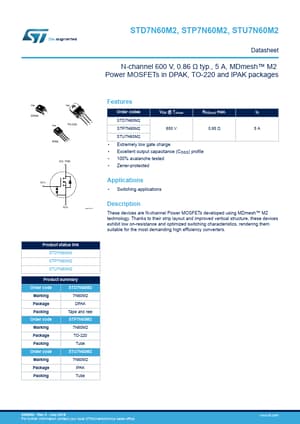

STD7N60M2, STP7N60M2, STU7N60M2 Datasheet N-channel 600 V, 0.86 Ω typ., 5 A, MDmesh™ M2 Power MOSFETs in DPAK, TO-220 and IPAK packages TAB DPAK 3 1 TAB TAB TO-220 1 23 IPAK 123 D(2, TAB) G(1) S(3) AM01475V1 Product status link STD7N60M2 STP7N60M2 STU7N60M2 Product summary Order code STD7N60M2 Marking 7N60M2 Package DPAK Packing Tape and reel Order code STP7N60M2 Marking 7N60M2 Package TO-220 Packing Tube Order code STU7N60M2 Marking 7N60M2 Package IPAK Packi.

STD7N60M2 Features

* Order codes VDS @ TJmax RDS(on) max. STD7N60M2 STP7N60M2 650 V 0.95 Ω STU7N60M2

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-protected ID 5A Applications

* Switching applications Descript
