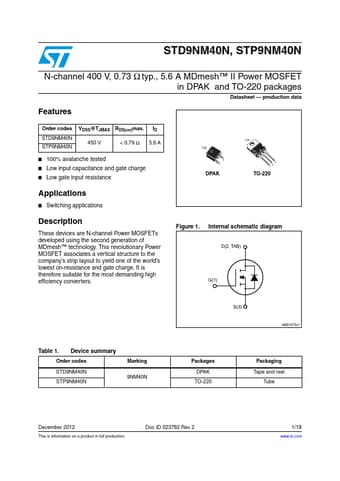

STD9NM40N Datasheet, Mosfet, STMicroelectronics

STD9NM40N Features

• Mosfet Order codes STD9NM40N STP9NM40N VDSS@TJMAX RDS(on)max. ID 450 V < 0.79 Ω 5.6 A
• 100% avalanche tested
• Low input capacitance and gate charge
• Low gate in

PDF File Details

Part number:

STD9NM40N

Manufacturer:

STMicroelectronics ↗

File Size:

579.90kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFE

STD9NM40N Application

• Applications
• Switching applications Description These devices are N-channel Power MOSFETs developed using the second generation of MDmesh
