STDLED624

N-channel Power MOSFET

STMicroelectronics

STDLED624 Features

* TAB 3 Order codes VDS RDS(on) max ID PTOT 1 DPAK t(s)TAB roduc3 2 1 te PTO-220 123 I²PAKFP TAB IPAK 3 2 1 oleFigure 1. Internal schematic diagram bsD(2,TAB) STDLED624 STFILED624 STPLED624 STULED624 620 V 2.5 Ω 4.0 A 45 W 20 W 45 W

* 100% avalanche tested

* Extremely hi

STDLED624 General Description

These Power MOSFETs boast extremely low onresistance, superior dynamic performance and high avalanche capability, making them suitable for the buck-boost and flyback topology. Obs Table 1. Device summary Order codes Marking Package Packaging STDLED624 STFILED624 STPLED624 LED624 DPAK I2PAKFP.

STDLED624 Datasheet (828.33 KB)

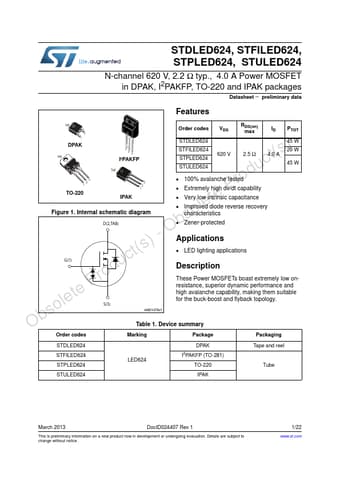

STDLED624 Datasheet Preview — Preview of STDLED624 PDF

Datasheet Details

Part number:

STDLED624

Manufacturer:

STMicroelectronics ↗

File Size:

828.33 KB

Description:

N-channel power mosfet.
STDLED624, STFILED624, STPLED624, STULED624 N-channel 620 V, 2.2 Ω typ., 4.0 A Power MOSFET in DPAK, I2PAKFP, TO-220 and IPAK packages Datasheet
<.
