STDLED625H

N-channel Power MOSFET

STMicroelectronics

STDLED625H Features

* Order code VDS RDS(on) max ID PTOT TAB t(s) 3 1 uc DPAK olete Prod Figure 1. Internal schematic diagram bs D(2,TAB) roduct(s) - O G(1) STDLED625H 620 V 2Ω 4.5 A 70 W

* 100% avalanche tested

* Extremely high dv/dt capability

* Gate charge minimized

* Very low

STDLED625H General Description

These Power MOSFETs boast extremely low onresistance and very good dv/dt capability, rendering them suitable for buck-boost and flyback topologies. lete P S(3) Obso AM01476v1 Order code STDLED625H Table 1. Device summary Marking Package LED625H DPAK Packaging Tape and reel March 2013 DocID.

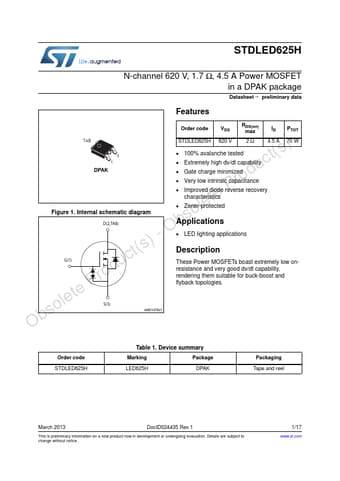

STDLED625H Datasheet (1.26 MB)

STDLED625H Datasheet Preview — Preview of STDLED625H PDF

Datasheet Details

Part number:

STDLED625H

Manufacturer:

STMicroelectronics ↗

File Size:

1.26 MB

Description:

N-channel power mosfet.
