STDS75 - Digital temperature sensor and thermal watchdog

Product Overview

STMicroelectronics

Part number	STDS75
Manufacturer	STMicroelectronics
File Size	600.07 KB
Description	Digital temperature sensor and thermal watchdog
Datasheet	STDS75 Datasheet

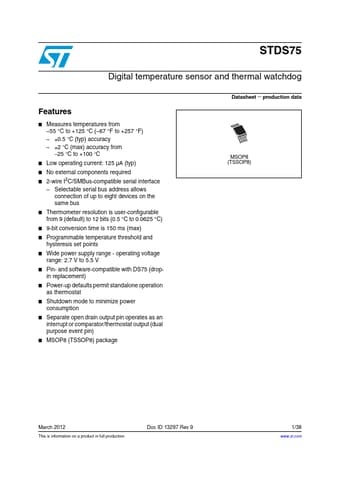

Additional preview pages of the STDS75 datasheet.

. 6 1.2 Temperature sensor output . 9 1.3.1 SDA (open drain) .

Measures temperatures from.
55 °C to +125 °C (.
67 °F to +257 °F).
±0.5 °C (typ) accuracy.
±2 °C (max) accuracy from.
25 °C to +100 °C.
Low operating current: 125 µA (typ).
No external components required.
2-wire I2C/SMBus-compatible serial interface.
Selectable serial bus address allows connection of up to eight devices on the same bus.
Thermometer resolution is user-configurable from 9 (default) to 12 bits (0.5 °C to 0.
