STEC01 Datasheet - STMicroelectronics

STEC01 Ground path safety switch

The STEC01 is an integrated programmable 12 mΩ power switch managed by the timer based circuitry. The device has 3 timers designed to interrupt the ground path of a power application after a maximum on-time and inhibits the restart of the platform during a cooling window. The maximum on-time can be .

STEC01 Features

* Input voltage range from 2.2 to 5 V

* 12 mΩ typ. N-channel FET RDS(on)

* 7 A continuous current capability

* PWM control signal from 4 Hz to 5 kHz, with 30% to 100% duty cycle

* 30 µA battery supply current

* 2 programmable timers: T1, T3

STEC01 Datasheet (1.15 MB)

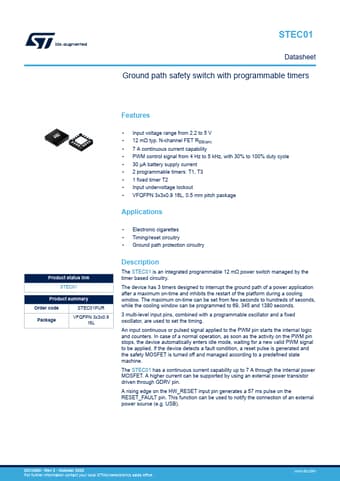

STEC01 Datasheet Preview — Preview of STEC01 PDF

Datasheet Details

Part number:

STEC01

Manufacturer:

STMicroelectronics ↗

File Size:

1.15 MB

Description:

Ground path safety switch.
